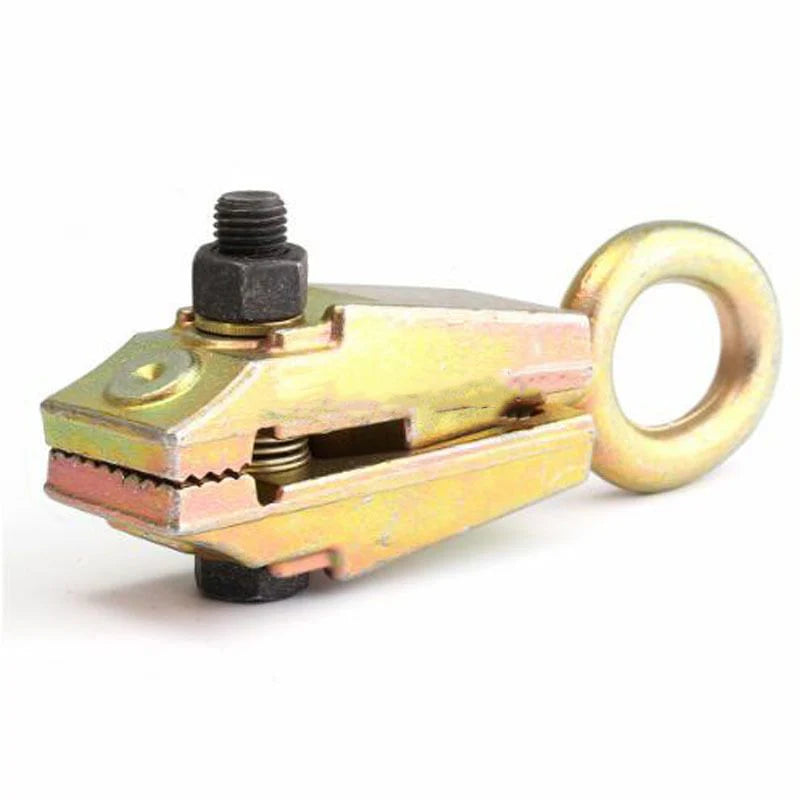

Small Mouth Pull Clamp – 5 Ton Capacity

A strong, compact, and versatile pull clamp designed for automotive collision repair, panel work, and tight‑access pulling jobs. Built from heavy‑duty steel with a self‑tightening jaw design, this clamp delivers reliable pulling power wherever you need it.

Key Features

• Self‑Tightening Jaw Design
  The harder you pull, the tighter it grips — ensuring secure, consistent pulling performance.

• 5 Ton Pulling Capacity
  Equivalent to 10,000 lbs of pulling strength for tough repair jobs.

• Two‑Way Pull Operation
  Suitable for straight pulling and top pulling, offering versatility for different repair angles.

• Drop‑Forged Steel Construction
  Provides superior strength, durability, and wear resistance under heavy load.

• Compact Small‑Mouth Design
  Perfect for tight spaces and narrow lips where larger clamps won’t fit.

• Minimum 1‑1/2" Reach‑Around
  Ideal for gripping:

  • Flanges
  • Cowls
  • Pinch welds
  • Panel lips
  • Tight‑edge areas

Specifications

• Size: 210mm x 92mm x 40mm
• Material: Heavy‑duty steel
• Pulling Capacity: 5 Ton (10,000 lbs)
• Operation: Straight & top pull
• Reach‑Around Requirement: Minimum 1‑1/2"

Perfect For

• Panel beaters
• Collision repair shops
• Automotive restoration
• Metal fabrication
• Chassis alignment & structural pulling
